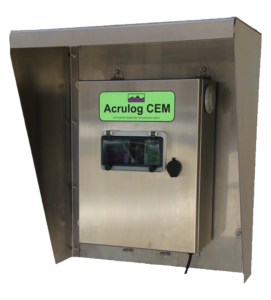

The Acrulog CEM (Continuous Emissions Monitor) is a flexible Hydrogen Sulfide Gas Monitoring System with full sampling capability. The CEM is a sophisticated system configurable as a single, dual or three-point monitoring system and can be used to monitor the inlet, intermediate stage and outlet of odor control systems. By using Acrulog MST technology the Acrulog CEM provides continuous 4 to 20 milliAmp output with real-time updates every 10 minutes for each point being monitored. The specially outfitted Acrulog(s) designed specifically for this application accurately measure H2S concentrations as low as 5 parts per billion (5 PPB).

Single Point – This system can be configured to measure from 5 ppb to 2 PPM, 0-20 PPM, 0-50 PPM, 0-200 PPM, or 0-1000 PPM.

Two Point – Two Acrulogs are used within this system and each point can be configured to measure from 5 ppb to 2 PPM, 0-20 PPM, 0-50 PPM, 0-200 PPM, or 0-1000 PPM.

Three Point – Three Acrulogs are used within this system and each point can be configured to measure from 5 ppb to 2 PPM, 0-20 PPM, 0-50 PPM, 0-200 PPM, or 0-1000 PPM.
