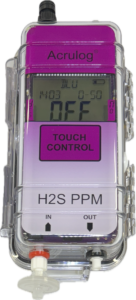

Acrulog IPX H2S Dilution Monitor
The Acrulog™ IPX H2S Dilution Monitor is designed for indoor and outdoor continual use and will record levels (0-20ppm, 0-50PPM, 0-200ppm, or 0-1000ppm) of H2S and features remote-draw sampling capability and memory backup.
The Acrulog™ IPX H2S Dilution Monitor is designed for long term continual use to record high PPM levels of H2S. The H2S monitor uses a built-in sample pump & dilution system designed for precision mixing of filtered air to reduce sensor exposure and moisture. The H2S monitor is capable of drawing a remote sample from up to 15 meters away with custom sample line & fittings.
Standard model features built-in 4-20mA industrial output, internal battery back-up and is compatible with an external power input via the waterproof cable provided (5-15VDC).
Optional outputs: RS485, 4G LTE-M or NB-IoT
All logged data can then be easily logged and downloaded via Bluetooth® wireless technology and viewed in the custom graphing and data analysis Acrustat software.
Typical Applications
- Odour and corrosion control
- Manhole and wet well monitoring
- Asset management and research studies
- Wastewater treatment plant monitoring
- Ventilation pipes and rising mains
Features & Benefits
- Designed for long term monitoring of high levels of PPM gas
- Wireless download of data via Bluetooth® technology
- Battery powered with 2 x 3.6v D Lithium batteries up to 20 days
- Logging capacity of 3 million data points
- Large, clear, informative alpha-numeric display
- Easy to download data using custom Acrustat software
- Modified IP67 case with easy access to change batteries
(no tools required) - Touch switch to access main menu
- Supplied with 15m/50 ft Acrulog custom sample tube
- Special PPB model for extended sampling
- Optional Outputs: RS485, and 4G LTE-M or NB-IoT
Specifications
- Measurement Range: 0-20PPM, 0-50PPM, 0-200PPM, 0-1000PPM, 0-2000PPB*
- Zero Drift: < +/- 1ppm at NTP (Normal temperature and pressure)
- Accuracy: < +/- 10% of reading over range at NTP Calibrated on 50ppm
- Instrument Temp Range: -10C to 50C (14F — 122F)
- Sensor Temp Range: -10C to 50C (14F — 122F)
- Relative Humidity Range: 0-100% non-condensing Remote Sample Draw Range Up to 15 meters (50 feet) with Acrulog custom sample tube to suit application
- Ingress Protection: Housed in a modified IP67 case
- External Dimensions: 205mm x 97mm x 63mm (8” x 3.8” x 2.5”)
- Instrument Weight: 850 grams with batteries fitted (30oz / 1.8 pounds)
- Logging Interval: 10 minutes to 18 hours
- 4-20mA Output: Externally powered loop 12-24 volts DC (4-20mA output updated every second for connection to flash powered sampling loops)
- Power Supply External: (with 4-20mA or RS485) External 5-24 volt DC supply (Average 30mA with peak of 50mA)
- Internal Battery Backup: 2 x 3.6v D size Lithium batteries
- Humidity Accuracy: +/- 5% RH @ 55% RH
- Temperature Accuracy: +/- 0.3 @ 25C (77F)
- Optional Output: Upgrades RS485, and 4G LTE CAT M1 or NB-IoT
- Warranty: 12 Months
