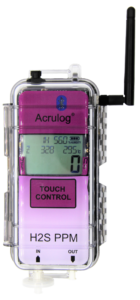

Acrulog IPX H2S Parts Per Million Monitor

The Acrulog™ IPX H2S Parts Per Million Monitor (PPM) is designed for indoor and outdoor continual use and will record levels (0-20PPM, 0-50PPM, 0-200PPM, or 0-1000PPM) of H2S with memory backup.

Standard model features built-in 4-20mA industrial output, internal batteries and is compatible with an external power input via the waterproof cable provided (5-15VDC).

Optional outputs: RS485, 4G LTE-M or NB-IoT.

All logged data can then be easily logged and downloaded via Bluetooth® wireless technology and viewed in the custom graphing and data analysis Acrustat software.

Typical Applications

Odour and corrosion control
Manhole and wet well monitoring
Asset management and research studies
Wastewater treatment plant monitoring
Ventilation pipes and rising mains

Features & Benefits

Wireless download of data via Bluetooth® technology
Battery backup 2 x 1.5v D Alkaline batteries up to 21 days
Battery backup 2 x 3.6v D Lithium Metal batteries up to 60 days
4-20mA communication on standard model
Large, clear, informative alpha-numeric display
External filter for easy replacement
Easy to download data using custom Acrustat software
Customized case with easy access to change batteries
(no tools required)
Touch switch to access main menu
Optional Outputs: RS485, and 4G LTE-M or NB-IoT

Specifications

Measurement Range: 0-20PPM, 0-50PPM, 0-200PPM, or 0-1000PPM
Zero Drift: < +/- 1ppm at NTP (Normal temperature and pressure)
Accuracy: < +/- 10% of reading over range at NTP Calibrated on 50ppm
Instrument Temp Range: -10C to 50C (14F — 122F)
Sensor Temp Range: -10C to 50C (14F — 122F)
Relative Humidity Range: 0-100% non-condensing
Ingress Protection: Housed in a modified IP67 case
External Dimensions: 205mm x 97mm x 63mm (8” x 3.8” x 2.5”)
Instrument Weight: 850 grams with Alkaline batteries fitted (30oz / 1.8 pounds)
Logging Interval: 10 minutes to 18 hours
4-20mA Output: Externally powered loop 12-24 volts DC (4-20mA output updated every second for connection to flash powered sampling loops)
Power Supply External: (with 4-20mA or RS485) External 5-24 volt DC supply (Average 20mA with peak of 50mA)
Internal Power Supply: 2 x 3.6v D size Lithium Metal or 2 x 1.5v D size Alkaline batteries
Humidity Accuracy: +/- 5% RH @ 55% RH
Humidity Sensor Range: 0-100%
Temperature Accuracy: +/- 0.3 @ 25C (77F)
Optional Output: Upgrades RS485, and 4G LTE CAT M1 or NB-IoT
Warranty: 12 Months
Antenna on 4GTX model: Internal antenna fitted as standard, external is optional
