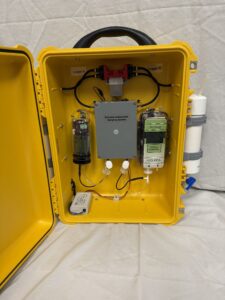

Low Range Sampling System (LRSS-2)

The LRSS-2 is a short-term, portable sampling system used to facilitate data collection from odor control systems.

The system works with one PPM and one ppb logger, two ppm loggers, or two ppb loggers, as determined by the expected H2S gas concentration levels. Two external moisture removal traps further protect the loggers from over-exposure to moisture. A dual headed pump draws a sample from negative pressure situations, and delivers the sample at the proper flow rate in positive pressure situations to the loggers.

We also sell a sample line attachment kit (SL KIT) for use with the LRSS-2.

Typical Applications

Chemical scrubbers
Biofilters
Biotricklers

Features & Benefits

Transportable
Durable
Simple to Calibrate
Easy to Maintain and Service
Quick Release to Swap Units In and Out

Specifications

External Dimensions: 20” H × 18.5” W × 7.5” D
Weight: 13.4 pounds
Number of Sample Points: 2
Pump: 12 Volt, 2-headed pump
Main Sample Flow Rate: 1.5 – 2 liters per minute
Conditioned Flow Rate to OdaLogs: 0.3 liters per minute; ± 0.1 lpm
Operating Temperature Range: 0 – 40°C
Humidity: With door closed, unit unaffected; not to be immersed in water.
Environmental Protection and Security: Case made of durable weather-resistant polymer. Positive door seal using elastomeric foam surround. Stainless steel fasteners used externally. Case has provision for a door padlock.
Power Requirements: 110 – 130 VAC, 20 W connection via standard outdoor grounded cord
