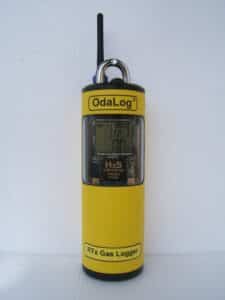

OdaLog Rtx Logger (Discontinued)

The OdaLog RTx uses an in-built GSM modem to transmit logged H2S data to a dedicated Internet server that is remotely accessible to end-users by using proprietary OdaStat-G software.
We recommend that the OdaLog RTx is returned to an authorised App-Tek service centre at least once every six months for a full inspection, calibration and linearity testing. Standard 12 month warranty given when used in accordance with the operator’s manual (excluding calibration and freight costs).
Typical Applications
- Chemical vendors
- Wastewater treatment plants
- Odour control consultants
- Municipalities
Features & Benefits
Wireless transmission of H₂S data from within sewer network
- Odour & corrosion control based on recent data
- Trending, graphing and reporting H₂S data
Powered by internal long-life lithium batteries (greater than 12 months)
- Allows for long term deployment
Easy-to-access H₂S data through using proprietary OdaStat-G software
- Global access to H₂S data via wireless-to-web monitoring
- Remote access to H₂S data reduces travel cost
Web-to-RTx configuration
- Parameters easily changed via bi-directional communication
Specially designed for harsh wastewater environments
- Unique and proven robust design based on established OdaLog Technology
Specifications (Discontinued)
- Instrument Temp Range: -20°C (-4°F) to 50°C (122°F)
- Sensor Temp Range: -10°C to +40°C (14°F to 104°F)
- Humidity Range: 15–90% RH (non-condensing)
- Ingress Protection: IP66/68
- Dimensions: 76mm (3”) x 260mm (10.24”) [without antenna]
- Weight: 980g (34.5oz) [with default battery]
- Power: 2 × replaceable D-size 3.6V lithium batteries (Li-SCO12)
- Battery Life: >12 months (depending on signal & transmission interval)
- Data Logging: Up to 42,000 readings (local memory; unlimited server memory)
- Logging Interval: 1 second to 1 hour
- Transmission Interval: 30 minutes to 24 hours
- Communication: Internal Quad-band modem [GPS optional]
- Antenna: Waterproof tri-band (850/900/1800/1900MHz), 99mm high
